Empire™'s Continuous-Belt Air Blasters process multiple parts with the speed and economy of our Basket Blasters while expanding the envelope of tumble blasting from nuts and bolts to heavier work pieces.
Unit of Measure

Specifications

Abrasive Charge Capacities

 N/A 300 to 400 lb

Air Flow Dust Collector at 11 Inch (in) Static Pressure

 N/A 1200 CFM

Filtration Area Dust Collector

 N/A 452 ft²

Discharge Drum Dust Collector

 N/A 16 gal

Blast Nozzles/Guns Size

 N/A 3/8 in. Wide Spray

Standard Features

Standard Features

 N/A
  • Automatic pulse cleaning of cartridge dust-collection filters
  • NEMA 12 enclosure housing Allen Bradley processor and electrical components
  • Nozzle oscillator
  • Rubber lined loading door with LED safety system
  • Precision timer
  • External barrel-head adjustments
  • Tunable media reclaimer with Ultrawear lining and externally replaceable wear plates
  • System sound dampener
  • Safety interlocks on access doors
  • Rake-off system for extended belt life
  • Batch Finish Parts up to 24" Long
  • Process 400 Pounds per Cycle
  • Deliver Consistent, On-Spec Results.

Warranty

Warranty

 N/A BEST WARRANTY IN THE INDUSTRY

Three-years limited on parts and labor

Empire™ Air-Blast Products

Empire™ Air-Blast Products

 N/A
  • A complete range of cabinets
  • Robotic, turntable and in-line automation
  • Blast rooms and blast booths
  • Portable blasters
  • A full line of parts and accessories

Additional Information

Additional Information

 N/A Our CB-3.5 machines, available with either pressure or suction blast systems, automate cleaning, peening, deburring, profiling, finishing and many other surface conditioning tasks. Plus, they handle a vast range of parts formed from casting and injection molding, as well as the molds used to produce the parts. Often, no other finishing method can compare to these heavy-duty production machines in terms of speed and quality results.

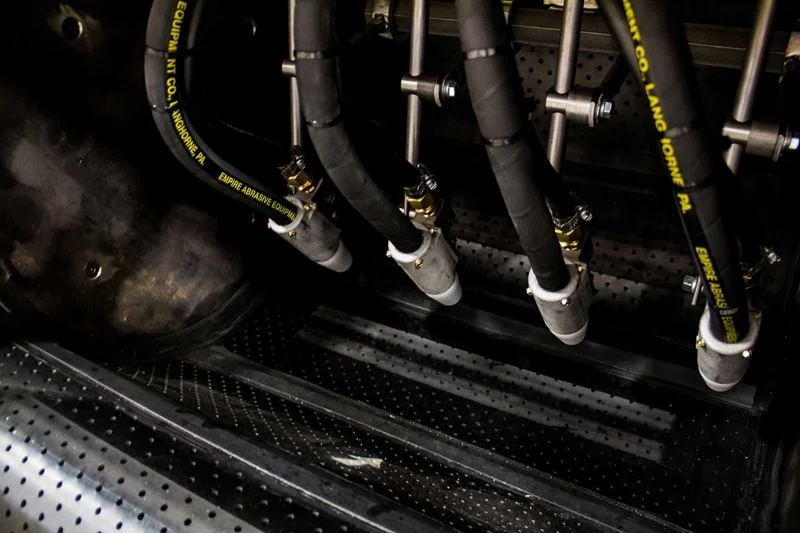

Operation is simple: Load parts onto a rugged perforated belt, set the precision timer, and the CB-3.5 does the rest. By tumbling parts within multiple abrasive blast streams, these machines deliver consistent results automatically.

Two models are available: a CB-3.5-S suction system and our more aggressive CB-3.5-P pressure unit, normally preferred in shot peening and other high intensity applications. Both machines have a part-load capacity of 400 pounds.

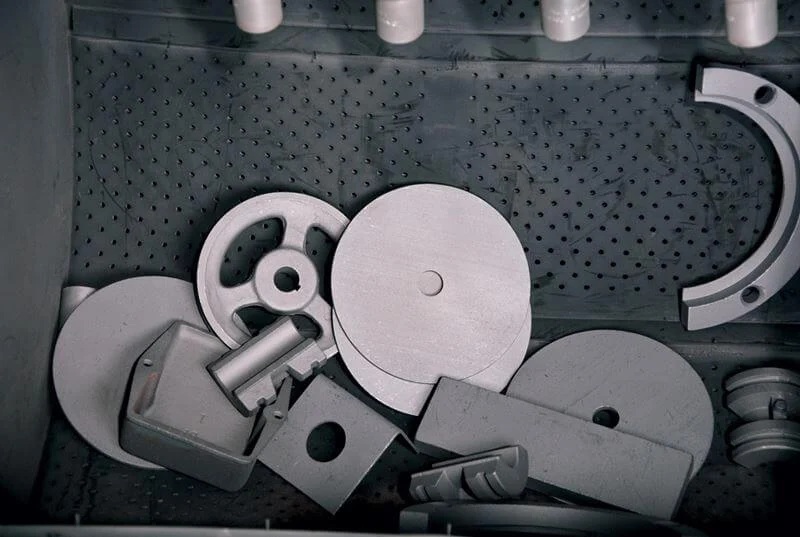

Empire™’s Continuous-Belt Air Blasters process parts of varying shapes, sizes and weights automatically.

Empire™’s Continuous-Belt Blasters unload parts with the push of a button. Once processing is complete, the operator opens the door, pushes the "reverse" button and the barrel rotates in the opposite direction to feed work pieces into a post-processing bin.

Note

Note

 N/A NEVER USE SILICA SAND IN ANY EMPIRE™ EQUIPMENT

Information subject to change without notice.
