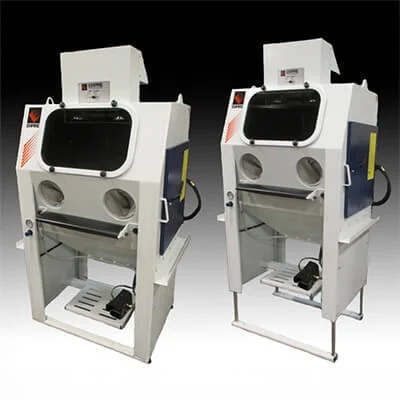

Built with operator comfort in mind, Pro-Lifter air blast cabinets include a toggle switch on the front that allows machine operators to move the entire cabinet up or down up to 10 inches to accommodate their comfort level. For an additional level of ergonomic comfort, the Pro-Lifter package can be added to Ergo-Blast Cabinet sizes 2636, 3648, and 4848. Fully customized and modified options are available as well.
Unit of Measure

Specifications

Standard Number of Doors

 N/A 1

Blast Hose Inside Diameter (ID)

 N/A 1/2 in

Blast Hose Length

 N/A 10 ft

Adjustment Height

 N/A Up to 10 in. Stroke

Dimensions

Interior Depth

 N/A 26 in

Interior Width

 N/A 36 in

Interior Height

 N/A 30 in

Overall Depth

 N/A 28 in

Overall Width

 N/A 42 in

Overall Height

 N/A 70 in

Pro-Lifter Package Includes

Pro-Lifter Package Includes

 N/A The Pro-Lifter package can be added to Pro-Finish® and Ergo-Blast cabinet models 2636, 3648, and 4848.
  • Electrically controlled hydraulic lifting cylinders at all four corners
  • 10-inch vertical adjustment range (40"-50" glove centerline; standard Pro-Finish® glove hole height is fixed at 44")
  • Front-mounted toggle switch for easy height adjustment
  • 115V power requirement (separate electrical source needed)
  • Bracket for repositioning media hopper and reclaim next to the machine

Customization and Modified Options Available

Customization and Modified Options Available

 N/A
  • Skid-mounted hydraulic column for independent cabinet movement
    • Allows height adjustment without moving the base
    • Media hopper and reclaim can be attached directly to the cabinet
    • Entire machine can be relocated via forklift

Additional Information

Additional Information

 N/A Designed for operator comfort, Pro-Lifter air blast cabinets feature an easy-to-use toggle switch on the front panel, allowing operators to raise or lower the entire cabinet by up to 10 inches for optimal working height.

Operators can raise or lower the entire cabinet by up to 10 inches for optimal working height
